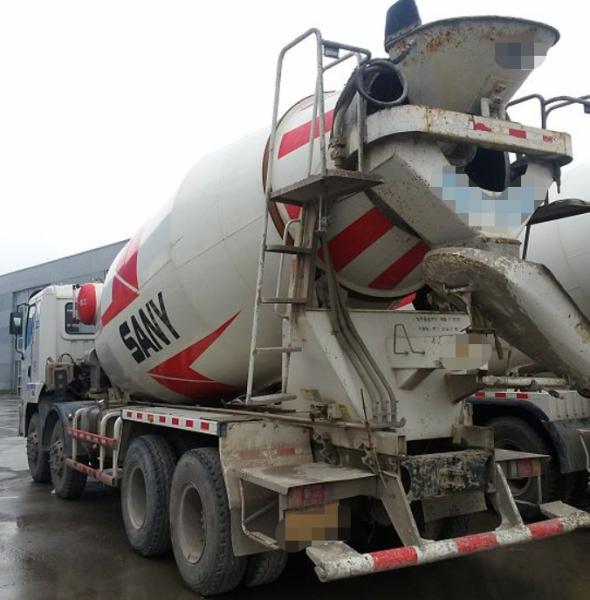

2019 Second Hand Mixer Truck Sany 12Cubic Capacity 10200×2530×3990mm

Product Categories

Hunan Zhongheng Machinery Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 2019 Second Hand Mixer Truck Sany 12Cubic Capacity 1020025303990mm
Brand: SANY
Price: 1 USD

Add to Cart

Sany Used Concrete Mixer Truck 12cubic

Model		SY412C-6W(Ⅴ)
Overall Parameters	Rudder	Left
	Curb Weight(kg)	14100
	GVW(kg)	31000
	Dimension (L×H×W)(mm)	10200×2530×3990mm
	Wheel Base(mm)	1900+2950+1350mm
	Min. Ground Clearance(mm)	≥240
	Min. Turning Diameter(m)	≤20
	Fuel Consumption(L/100km)	≤42
	Braking Distance(V0=30km/h)(m)	≤10(Full load); ≤9(Empty load)
	Engine Model	P11C-UJ HINO
Chassis	Displacement(L)	11.596
	Rated Power/Rev Speed(kW/rpm)	251/2200kW/rpm
	Max. Torque/Rev Speed(N.m/rpm)	2060/1000-1400
	Emissions	Euro V
	Gear-box	Fast 9JS150TA-B
	Front Axle(t)	9
	Intermediate, Rear Axle(t)	2×16
	Cab Capacity	2
	Tyre	12.00R20
		Pneumatic dual- circuit braking system with drum
	Fuel Tank Capacity(L)	300
	Agitator Capacity (m3)	7.68
Drum	Feeding Speed(m3/min)	≥8
	Discharge Speed(m3/min)	≥5
	Discharge Residual Rate	≤0.5%
	Slump(mm)	50 － 210
	Water Tank Capacity(L)	800
	Water Pressure(MPa)	0.35-0.38
	Reducer	PMP PMB7.1
	Hydraulic Pump	Sany P4VC090NHW
	Motor	Sany M2F090NCWV
